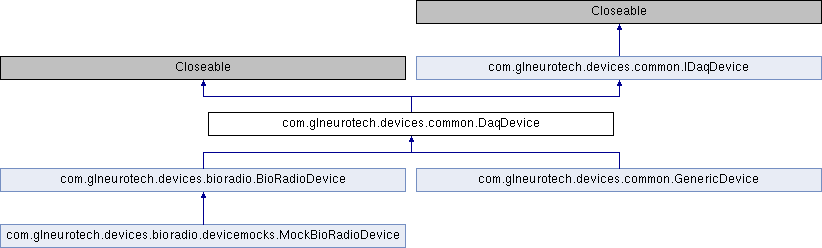

Inheritance diagram for com.glneurotech.devices.common.DaqDevice:

Public Member Functions
boolean	getIsConnected ()

final boolean	getIsDeviceLocked ()

final void	setIsDeviceLocked (boolean value)

final boolean	getIsAcquiring ()

final boolean	getIsRecording ()

final void	setIsRecording (boolean value)

boolean	connect ()

abstract void	processPacketForStatusData (DeviceDataPacket packet)

abstract void	processPacketForSignalData (DeviceDataPacket packet)

abstract boolean	waitForStatusInitialization ()

void	disconnect ()

final void	onSignalBufferOverflow (SignalDataEventArgs args)

final void	onGeneralOperationError (EventArgs args)

final void	onCommuncationError (CommunicationErrorArgs args)

abstract void	startAcquisition ()

abstract void	stopAcquisition ()

abstract void	initializeSignalGroups (Optional< Integer > signalBufferSize)

void	unlockDevice () throws InterruptedException, TimeoutException

void	lockDevice () throws InterruptedException, TimeoutException

void	setDeviceTime () throws InterruptedException, TimeoutException

void	setDeviceTime (LocalDateTime time) throws InterruptedException, TimeoutException

final String	getHardwareVersion ()

final void	setHardwareVersion (String value)

final String	getFirmwareVersion ()

final void	setFirmwareVersion (String value)

final String	getName ()

final void	setName (String value)

abstract DeviceTypeCode	getDeviceType ()

final ArrayList< SignalGroup >	getSignalGroups ()

final HardwareLinkHandler	getConnection ()

final void	setConnection (HardwareLinkHandler value)

	DaqDevice (HardwareLinkHandler hardwareLink, String name, Optional< Integer > signalBufferSize) throws IOException

final void	startRecording (GlntStream outputStream)

final void	stopRecording ()

final void	getDeviceId () throws InterruptedException, TimeoutException

final DeviceTypeCode	getInternalDeviceType () throws InterruptedException, TimeoutException

void	close () throws IOException

Public Attributes
Event< EventHandler< SignalDataEventArgs > >	SignalBufferOverflowed = new Event<EventHandler<SignalDataEventArgs>>()

Event< EventHandler< CommunicationErrorArgs > >	CommunicationError = new Event<EventHandler<CommunicationErrorArgs>>()

Event< EventHandler< EventArgs > >	GeneralOperationError = new Event<EventHandler<EventArgs>>()

Static Public Attributes
static final int	_NUM_OF_RETRY = 10

static final int	_TIMEOUT_MS = 1000

Protected Member Functions
void	setIsConnected (boolean value)

final void	setIsAcquiring (boolean value)

void	getInternalFirmwareVersion () throws InterruptedException, TimeoutException

Detailed Description

The base class from which Great Lakes NeuroTechnologies data acquisition devices inherit.

Constructor & Destructor Documentation

◆ DaqDevice()

com.glneurotech.devices.common.DaqDevice.DaqDevice	(	HardwareLinkHandler	hardwareLink,
		String	name,
		Optional< Integer >	signalBufferSize
	)		throws IOException

Daq device method.

Parameters

hardwareLink	Take a HardwareLinkHandler as parameter.
name	Take a string for name parameter.
signalBufferSize	Take an optional integer.

Exceptions

IOException

Member Function Documentation

◆ close()

void com.glneurotech.devices.common.DaqDevice.close ( ) throws IOException

Close the connection with the bio radio device.

Exceptions

IOException

◆ connect()

boolean com.glneurotech.devices.common.DaqDevice.connect ( )

Opens a connection to the device so that commands can be issued and data can be acquired.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ disconnect()

void com.glneurotech.devices.common.DaqDevice.disconnect ( )

Disconnects and closes the connection.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getConnection()

final HardwareLinkHandler com.glneurotech.devices.common.DaqDevice.getConnection ( )

Gets connection.

Returns

◆ getDeviceId()

final void com.glneurotech.devices.common.DaqDevice.getDeviceId ( ) throws InterruptedException, TimeoutException

Gets device Id.

Exceptions

InterruptedException
TimeoutException

◆ getDeviceType()

abstract DeviceTypeCode com.glneurotech.devices.common.DaqDevice.getDeviceType ( )

abstract

Abstract method - get device type.

◆ getFirmwareVersion()

final String com.glneurotech.devices.common.DaqDevice.getFirmwareVersion ( )

The current device firmware version.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getHardwareVersion()

final String com.glneurotech.devices.common.DaqDevice.getHardwareVersion ( )

The current device hardware version number.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getInternalDeviceType()

final DeviceTypeCode com.glneurotech.devices.common.DaqDevice.getInternalDeviceType ( ) throws InterruptedException, TimeoutException

Gets internal device type.

Returns

Exceptions

InterruptedException
TimeoutException

◆ getIsAcquiring()

final boolean com.glneurotech.devices.common.DaqDevice.getIsAcquiring ( )

Indicates whether the device is currently streaming signal data to the PC.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getIsConnected()

boolean com.glneurotech.devices.common.DaqDevice.getIsConnected ( )

Indicates whether the device is currently connected to the PC and able to receive commands.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getIsDeviceLocked()

final boolean com.glneurotech.devices.common.DaqDevice.getIsDeviceLocked ( )

Indicates whether the device is in locked mode. When a device is locked, the only commands that can be issued are to start and stop acquisition. All other commands are disabled.

◆ getIsRecording()

final boolean com.glneurotech.devices.common.DaqDevice.getIsRecording ( )

Indicates whether the device is currently recording the raw data stream to a file.

◆ getName()

final String com.glneurotech.devices.common.DaqDevice.getName ( )

The name associated with this device.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ getSignalGroups()

final ArrayList<SignalGroup> com.glneurotech.devices.common.DaqDevice.getSignalGroups ( )

A list of all SignalGroups defined for this device.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ lockDevice()

void com.glneurotech.devices.common.DaqDevice.lockDevice ( ) throws InterruptedException, TimeoutException

Locks the Great Lakes NeuroTechnologies device so that no other interactive commands will be accepted.

Returns: Boolean value indicating whether the lock command was successful.

◆ onCommuncationError()

final void com.glneurotech.devices.common.DaqDevice.onCommuncationError ( CommunicationErrorArgs args )

On communication error

Parameters

args

◆ onGeneralOperationError()

final void com.glneurotech.devices.common.DaqDevice.onGeneralOperationError ( EventArgs args )

On general operation error.

Parameters

args

◆ setConnection()

final void com.glneurotech.devices.common.DaqDevice.setConnection ( HardwareLinkHandler value )

Sets connection

Parameters

value Take a HardwareLinkHandler as parameter.

◆ setDeviceTime() [1/2]

void com.glneurotech.devices.common.DaqDevice.setDeviceTime ( ) throws InterruptedException, TimeoutException

Sends the current time to the device to synchronize with PC system time. The device must be unlocked for this command to have an effect.

◆ setDeviceTime() [2/2]

void com.glneurotech.devices.common.DaqDevice.setDeviceTime ( LocalDateTime time ) throws InterruptedException, TimeoutException

Sets the device time to a specific date/time value

Parameters

time	The DateTime value to which the device will be set.

◆ setFirmwareVersion()

final void com.glneurotech.devices.common.DaqDevice.setFirmwareVersion ( String value )

Sets firmware version

Parameters

value Take a string asa parameter.

◆ setHardwareVersion()

final void com.glneurotech.devices.common.DaqDevice.setHardwareVersion ( String value )

Sets Hardware version

Parameters

value Take a string as parameter.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ startAcquisition()

abstract void com.glneurotech.devices.common.DaqDevice.startAcquisition ( )

abstract

Begins streaming real-time data from the connected device.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ startRecording()

final void com.glneurotech.devices.common.DaqDevice.startRecording ( GlntStream outputStream )

Starts recording raw device data stream to the specified file name.

Parameters

outputStream The stream to which the recording should be written

Implements com.glneurotech.devices.common.IDaqDevice.

◆ stopAcquisition()

abstract void com.glneurotech.devices.common.DaqDevice.stopAcquisition ( )

abstract

Stops streaming real-time data from the connected device.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ stopRecording()

final void com.glneurotech.devices.common.DaqDevice.stopRecording ( )

Stops recording raw device data stream and closes the file. If the device is not currently recording, an exception will be thrown.

Implements com.glneurotech.devices.common.IDaqDevice.

◆ unlockDevice()

void com.glneurotech.devices.common.DaqDevice.unlockDevice ( ) throws InterruptedException, TimeoutException

Sends the unlock command to the device.

Returns: Boolean value indicating whether the unlock command was successful.

◆ waitForStatusInitialization()

abstract boolean com.glneurotech.devices.common.DaqDevice.waitForStatusInitialization ( )

abstract

In a derived class, performs any additional initialization required in order for all device status properties to be valid. Returns false if the method times out waiting for a packet to be received.

Member Data Documentation

◆ CommunicationError

Event<EventHandler<CommunicationErrorArgs> > com.glneurotech.devices.common.DaqDevice.CommunicationError = new Event<EventHandler<CommunicationErrorArgs>>()

Raised when a communication error has occurred.

◆ GeneralOperationError

Event<EventHandler<EventArgs> > com.glneurotech.devices.common.DaqDevice.GeneralOperationError = new Event<EventHandler<EventArgs>>()

Raised as a notification of a general operational error. Typically, if this event is raised, device operation can still continue.

This event passes the originally thrown exception that can be used to decide further program execution or to notify the end user that a problem has occurred. An example of such a condition is a disk full error when recording incoming data. In this scenario, recording will stop but the device object will continue to receive packets and otherwise operate normally.

◆ SignalBufferOverflowed

Event<EventHandler<SignalDataEventArgs> > com.glneurotech.devices.common.DaqDevice.SignalBufferOverflowed = new Event<EventHandler<SignalDataEventArgs>>()

Indicates that one or more Signals has overflowed its internal buffer

When data is read from a device, the data is stored in Signal objects, each of which use an internal buffer. If data is not read from the signal in a timely manner, the buffer can reach its capacity and a SignalBufferOverflowed event is raised. To avoid this error, subscribe to a SignalGroup's OnDataArrived event and read data from the signal.

The documentation for this class was generated from the following file:

GLNeuroTech/src/main/java/com/glneurotech/devices/common/DaqDevice.java
